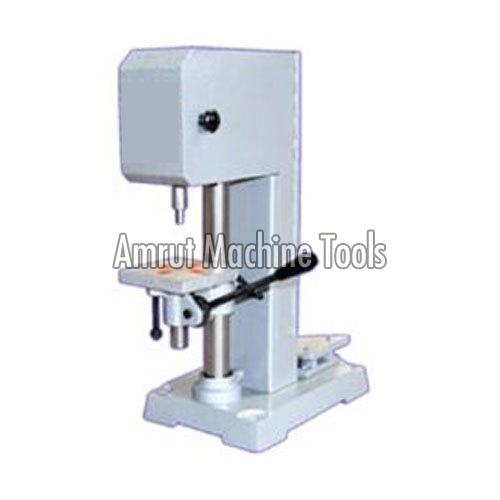

Tapping Machine
Leading Manufacturers, Exporters, Wholesaler, Retailer and Trader of 12mm Tapping Machine and 6mm Tapping Machine from Bhavnagar.
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler, Trader |
| Operating Mode | Automatic |
| Brand Name | Prashant |
| Functions | Tapping |
| Layout | Vertical |
| Tapping Capacity in MS | 12mm |
| Tapping Capacity in SS | 10mm |
| Distance Spindle to Column | 140mm |
| Distance Between Chuck to Base | 450mm |
| Distance Between Chuck to Work Table | 380mm |
| Size of Base Plate | 480x350 mm |
| Size of Work Table | 190x220 mm |
| Diameter of Column | 74mm |
| V Belt (Inside) | Inside A-71 |
| V Belt for Motor (Outside) | A-30 |
| No. of Spindle Range | 3 |
| Forward Speed Range | 350/620/1100 |
| Reverse Speed Range | 420/745/1315 |
| Motor Single Phase/Three Phase | 0.75 HP/1HP, 1440 RPM |
| Overall Height | 1245 mm |
| Overall Width | 370 mm |
| Overall Front to Back | 600 mm |
| Weight | 120 Kg |
Preferred Buyer From
| Location | Worldwide |
Note:
- Use 3/8 Drill Chucks only.
- Standard Equipment:Motor Pulley
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler, Trader |
| Operating Mode | Automatic |
| Brand Name | Prashant |
| Functions | Tapping |
| Layout | Vertical |
| Tapping Capacity in Brass | 7mm |
| Tapping Capacity in MS | 6mm |
| Table Size | 145x145 mm |
| Spindle Travel/Table Travel | 75mm |
| Coloumn Diameter | 47mm |
| Spindle Center to Column | 82mm |
| Chuck to Table Distance | 82mm |
| Tapping Depth | 30mm |
| Overall Height from Width | 26.1x20x9.3/4 Inch |
| V Belt | A-38 |
| Electric Motor | 0.5 HP |
| Approx Machine Weight | 50 Kg |
Preferred Buyer From
| Location | Worldwide |
Note :
- Use 3/8 Drill Chucks only.
- Standard Equipment:Motor Pulley
